Newly designed top quality easy to operate air jet looms at a reasonable price

Company OverviewFounded in 1995, Haijia Machinery is a professional manufacturer of shuttleless looms in Chinaintegrating R&D, manufacturing, sales, international trade and services. The main productsinclude "Haijia" brand HW series water jet looms and HA series air jet looms. After the appraisal byChina Texti

Featured Products

New Design Top Quality Easy to Operating Air Jet Looms with Good Price


Company Overview

Founded in 1995, Haijia Machinery is a professional manufacturer of shuttleless looms in China
integrating R&D, manufacturing, sales, international trade and services. The main products
include "Haijia" brand HW series water jet looms and HA series air jet looms. After the appraisal by
China Textile Machinery Association, the technical level of water jet looms produced by Haijia
Machinery has reached the international advanced level, and the market share has been leading the world
for many years. The company adheres to the corporate mission of providing customers with competitive
weaving solutions and services, and continues to create value for customers.
With the responsibility of revitalizing national brands, it will surely become a world famous brand in
the Chinese loom industry.


Machine Model

Water Jet Loom
HW3851;  HW3873 ; HW861C; HW4008; HW4010; HW4012 HW5012; HW8010
Air Jet Loom
HA-N ; HA-9010

New Design Top Quality Easy to Operating Air Jet Looms with Good Price



Machine Specification


Item Standard specificationsoption
Reed spaceNominal(cm)150,170,190,210,230,260,280,320,340 360
Neck in(mm)0--600mm
Weaving scopeWeft Insertion Rate1400-2200M/min
Filament8D-5000D
Weft selection Single/Double /Three/Four Nozzle
Power Super start motor,  Direct drive Motor
The motor rating(KW)1.8,  2.2,  2.8,  3.0 , 3.7 ,4.0 , 4.2, 4.5
Weft insertion Main nozzle, deputy nozzle together, use special reedtensile
 Auxiliary main nozzle
 Deputy nozzle relay control
Shedding Crank shedding
 Upper cam shedding
 Upper dobby shedding
Let off Mechanical or  Electronic
Variable dis dia(mm)800or 1000
Take up Mechanical or Electronic
 The largest cloth diameter(mm)φ520
 Weft density range7.1-80.3 pick//cm(18-204pick/inch)
 Weaving length countingDisplayed on the keyboard display, with the function of scale parking
Beating-up Crank type sley feet more beating -up mechanism
 Four linkage beating-up
Measuring weft Storage Electric drum weft
Leno Planetary gear type
Cutter Mechanical scissors
Stop deviceWeft stopReflex detector
Warp stop 6 columns batching motion
OtherWring side,yarn end processing broken parking
Fault displayOperating screen
4 color indicator light display
Automation The computer control system
 Monitoring and self diagnosis function

CNC Workshop

The company is equipped with advanced CNC equipment, high-precision imported
processing center, and adopts information management methods to achieve independent
precision machining of precision parts of key parts of the loom. The processing accuracy
of key parts and components reaches 0.01mm, greatly improving the whole machine Stability
and startup efficiency.

New Design Top Quality Easy to Operating Air Jet Looms with Good Price

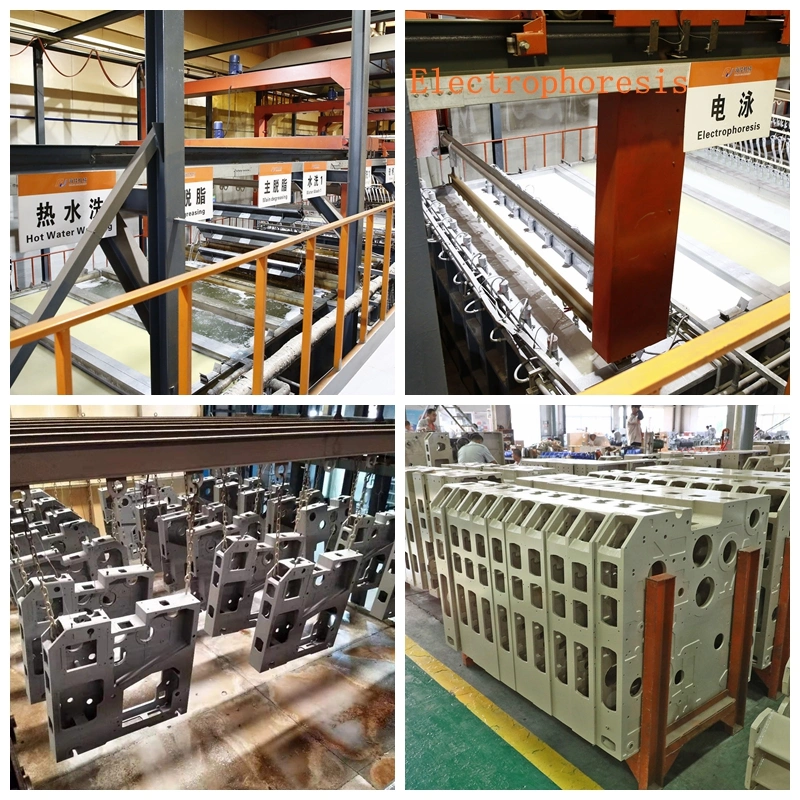

Painting Workshop

The spraying workshop adopts the fully-automatic coating production line and spraying robot
independently developed by the company, and uses the same electrophoretic coating process
as car that of automobile production to ensure that the inner and outer surfaces of complex
workpieces are even and smooth, which greatly improves the corrosion resistance of the workpieces.
Environmentally friendly surface treatment, electrophoretic coating, topcoating process, and coating
film drying process are all automated to improve the quality of the workpiece coating, have the same
salt spray resistance as the car, and the appearance is more excellent.Improve the corrosion resistance
of the inner cavity of the workpiece, strong adhesion, long anti-rust time.

New Design Top Quality Easy to Operating Air Jet Looms with Good Price

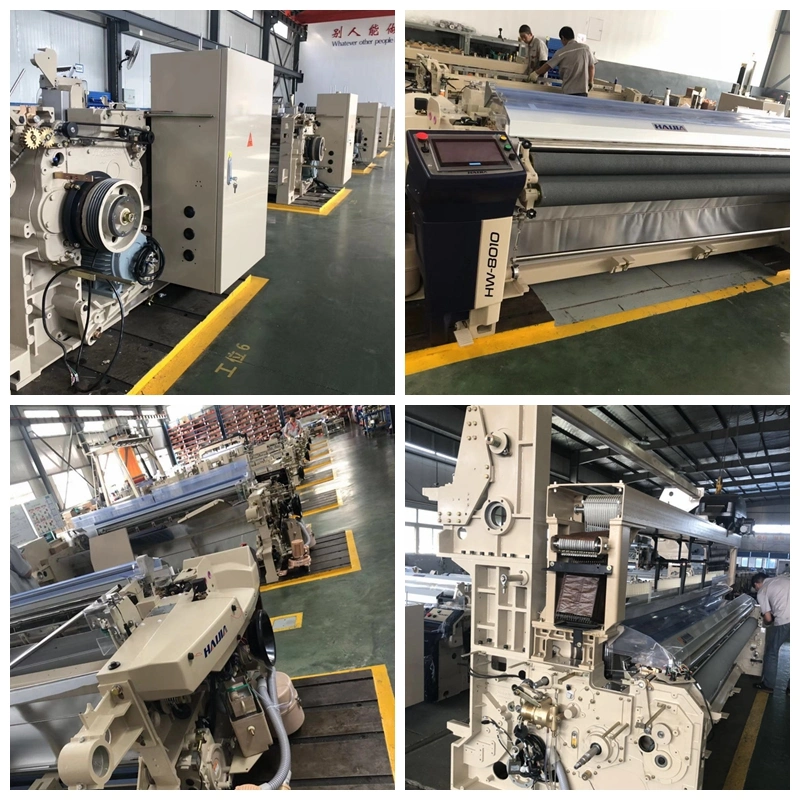

Assembly shop

The company adopts the whole machine assembly line, through strict quality management,
finely differentiates the assembly process flow, uses special tools to fix the torque to fasten the connectors,
and optimizes the quality control of the product through the technology of the entire assembly line.
Cost-effectiveness and quality have strict requirements, ensuring the quality of the whole organization.

New Design Top Quality Easy to Operating Air Jet Looms with Good Price

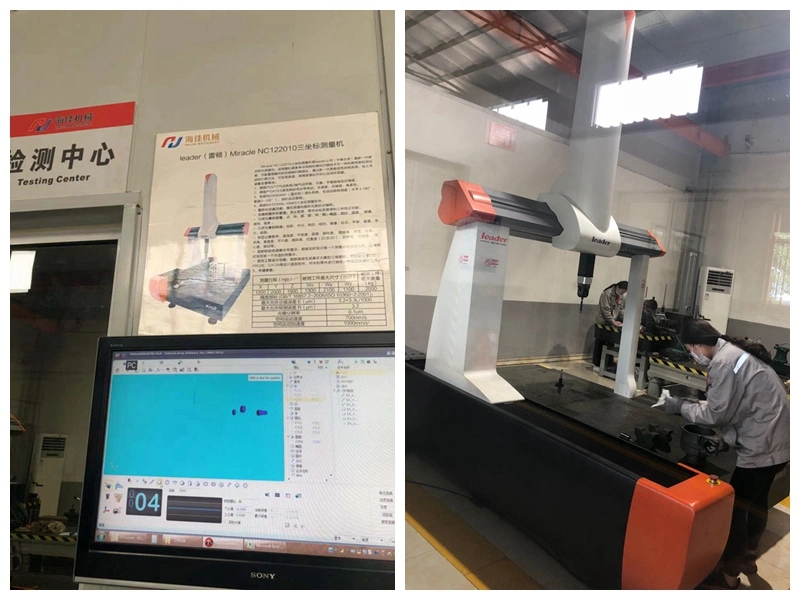

Quality Control Workshop

The use of advanced inspection and testing equipment to ensure the pass rate of production
products in each process, strictly control the quality fluctuations, so as to ensure the product quality
of the whole machine. Improve product production process through inspection,
reduce quality cost and enhance product comprehensive competitiveness

New Design Top Quality Easy to Operating Air Jet Looms with Good Price



Customer Representative

New Design Top Quality Easy to Operating Air Jet Looms with Good Price


Exhibition Site

New Design Top Quality Easy to Operating Air Jet Looms with Good Price

New Design Top Quality Easy to Operating Air Jet Looms with Good Price






Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
