Open U C20 Rubber Chevron Pattern Conveyor Belt


We are a leading and professional manufacturer of rubber products, with more than 15 years research and development experience. Our products are sold to more than 25 countries around the world and receive favorable feedback from our customers. All the belts we provide meet cover grades and are in accordance with International standards (e.g. DIN 22102, RMA, AS 1332, SABS 1173/2000,IS 1891, BS 490, JIS K 6322 etc).


Chevron Conveyor Belt

Chevron conveyor belt is suitable for conveying loose, bulky or bagged materials on inclined surface at angles of less than 45 degrees.We have different chevron mould for you choosing. The chevron height is from 5 to 32mm, width can be 400mm to 2000mm. Cleats and top cover rubber are vulcanized integrally, it is very stable, and cleat pattern, angle and pitch are designed elaborately and beautiful. We have more than 40+ kinds of different patterns that can meet the needs of customers in different countries around the world.




★ Belt types

♦ Types: Open V, Closed-V, Multi-V, L type, H type, Y type, etc.

♦ Chevron Height: C5, V6, C10, C12.7, C14, C15, C20, C25, C32, etc,.

♦ Width: 400MM-2000MM

♦ Thickness: 4-50mm

♦ Types: EP/NN 80-EP/NN630

♦ Feature: Good adhesion and long working life.

Open U C20 Rubber Chevron Pattern Conveyor Belt



★★ Technical Data of Rubber Cover:

♦ Tensile Strength: ≥ 10Mpa

♦ Elongation at Break: ≥ 350%

♦ Adhesive strength between carcass: ≥ 6.0N/mm

♦ Adhesive strength between cover and carcass: ≥ 3.0N/mm

♦ Elasticity: ≥ 32%

♦ Abrasion: ≤ 200mm3


★★★ The following is a part of our pattern mould, Please contact us for detailed drawing of chevron conveyor belt.
Open U C20 Rubber Chevron Pattern Conveyor Belt


★★★★ Why choose us?

1. We are a manufacturer with more than 15 years research and development experience, our products are sold to more than 25 countries around the world and receive favorable feedback from our customers.

2. We have very professional production team and advanced production equipment. In order to improve our competitiveness, we innovate and improve our technology and products every year

3. In order to make sure products are qualified, we have professional people to tracking all orders, each conveyor belts will be inspected before delivery and only qualified will be shipped to our customers. According to your requirements, we will supply you test photos and professional inspect report.


4. Our boss prefer the sales policy of small profits margin but large quantity. So , with the same quality level, our prices are more competitive than other factories.

5. We can accept small (LCL) orders, but highly recommended to choose FCL order.

6. Professional Service.

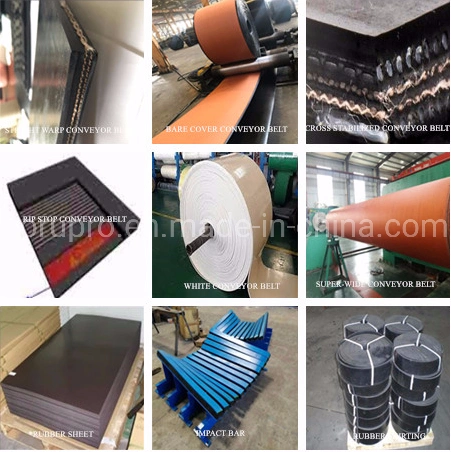

PRODUCT LIST
