Low friction, low vibration, long life/textile machinery/best quality tapered roller bearings

1. Taper Roller Bearing Introduction:Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preload mounting can be made. 1). Tapered roller beari

Featured Products

Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing
Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing
Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing

1. Taper Roller Bearing Introduction:

Taper roller bearing are generally used to support combined load mainly consisting of radial load. Their cups are separable for easy assembling. During mounting and using, radial clearance and axial clearance can be adjusted and preload mounting can be made.

1). Tapered roller bearings consist of four basic components including the cone (inner ring), the cup(outer ring), tapered rollers, and a cage (roller retainer).
2). The construction provides a high capacity for radial loads, axial loads and combined loads.
3). Rolling body is a cylindrical roller bearing to the heart, is a separate type bearings, installation and removal is very convenient.
4). Taper roller bearing could used in Automobile, Forklift, Gauge Lathe, Motor, Mining Machinery, Construction Machinery, Vibration Machine, Petroleum machinery etc.

2. Taper roller bearing 32220 for ministry of machine building

Brand:OEM
Structure: Taper Roller
Model Number: 32220 100*180*46mm, 5.1kg
Bearing Material: Chrome Steel, Carbon Steel, Stainless Steel, Plastic, Ceramic
Cage Material: Steel, Brass, Nylon
Seals Type:Open
Lubrication: Grease, Oil
Precision: P0, P6, P5, P4
Clearance: C0, C3, C4
Vibration: V1, V2, V3
Noise: Z1, Z2, Z3
Of the goods: Taper Roller Bearing

Structure: TaperType: RollerBrand Name: OEM
Bore Size: 1 - 100 mmOutside Diameter: 1 - 180 mmModel Number: 32220
Precision Rating: P0, P6, P5, P4, P2Seals Type: OpenNumber of Row: Double Row, Single Row
Place of Origin: Shandong, China Bearing Material: Chrome Steel, Carbon Steel, Stainless Steel, Plastic, CeramicCage Material: Steel, Brass, Nylon
Clearance: C1 C2 C0 C3 C4 C5Noise: Z1, Z2, Z3, Z4Lubrication: Grease, Oil
Hardness: Chrome steel HRC60-65Service: OEM serviceCertificate: ISO9001: 2000
Guarantee: One year

Packaging & Delivery
Packaging Details: 1. Industrial packing
2. Single box packing
3. Plastic Packing
4. As you requirements

3. Technical data for your better reference:

30200 Series30300 Series32000 Series32200 Series32300 Series
3020230304320043220532305
3020330305320053220632306
3020430306320063220732307
3020530307320073220832308
3020630308320083220932309
3020730309320093221032310
3020830310320103221132311
3020930311320113221232312
3021030312320123221332313
3021130313320133221432314
3021230314320143221532315
3021330315320153221632316
3021430316320163221732317
3021530317320173221832318
3021630318320183221932319
3021730319320193222032320
3021830320320203222132322
3021930322320213222232324
3022030324320223222432326
30221303263202432226
30222  3202632228
30224  3202832230
30226    32030
   30228
   30230
   30232

OTHER MODELS WE CAN OFFER
ISODimensions    Basic Load Limitting Weight
 (mm) Rating (N) speed
  ( r/min )
        Lubrication
 dDBTCDyn. CStat. C0GreaseOil
322031740161714290002950010000130000.102
32204204718191533100347008000110000.161
3220525521819153580044000700095000.19
3220630622021175010057000630085000.28
3220735722324196600078000530070000.43
3220840802324197480086500480063000.53
3220945852324198090098000450060000.58
32210509023241982500100000430056000.61
3221155100252621106000129000380050000.83
3221260110282924125000160000340045001.15
3221365120313227151000193000300040001.5
3221470125313327157000208000280038001.6
3221575130313327161000212000260036001.7
3221680140333528187000245000240034002.05
3221785150363830212000285000220032002.6
3221890160404234251000340000200030003.35
3221995170434537281000390000190028004.05
32220100180464939319000440000180026004.9
32221105190505343358000510000180026006
32222110200535646402000570000170024007.1
32224120215586150468000695000160022009.15
322261302306467545500008300001500200011.5
3222814025068715864400010000001400190014.5
3223015027073776073700011400001200170017.5
3223216029080846788000014000001100160025.5
3223417031086917198000015600001000150028.5
3223618032086917110100001640000950140029.8
3223819034092977511100001920000900130036
32240200360981048212100002000000900130042.7
322442204001081149015300002560000800110058.3

4. Our Company

Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing
Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing
Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing
Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing
Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing

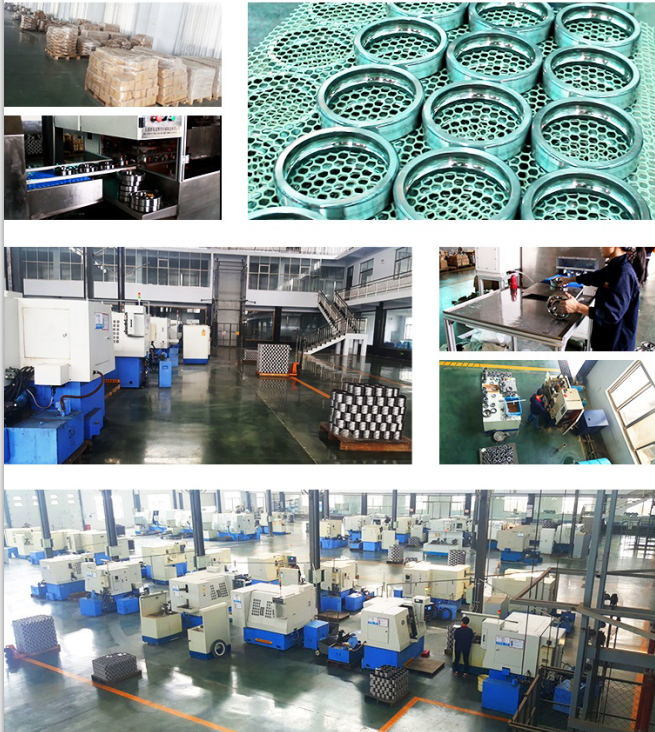

As a comprehensive industrial enterprise that integrates R & D and sales services, with over 20 years' experience, especially the guaranteed supplier of China Manufacturing Network, our factory covers an area of 10,000 square meters, which enables very quick delivery.

Owning the most advanced CNC automatic production line, automatic assembly line, and a varied of testing equipment, our bearings mainly cover SKF, NSK, NTN, KOYO, TIMKEN, NACHI, THK etc., which meets all low noise, low vibration, low friction, high precision, high sealed, high turning speed and long life requests.

Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing


5. Exhibition

Low Friction, Low Vibration, Long Life/Textile Machinery/Best Quality Tapered Roller Bearing

6. FAQ


SAMPLES
1.Samples quantity: 1-10 pcs are available.
2.Free samples: It depends on the model NO., material and quantity. Some of the bearings samples need client to pay   samples charge and shipping cost.
3.It's better to start your order with Trade Assurance to get full protection for your samples order.

CUSTOMIZED
The customized LOGO or drawing is acceptable for us.

MOQ
1.MOQ: 10 pcs mix different standard bearings.
2.MOQ:  5000 pcs customized your brand bearings.

OEM POLICY
1.We can printing your brand (logo,artwork)on the shield or laser engraving your brand on the shield.
2.We can custom your packaging according to your design
3.All copyright own by clients and we promised don't disclose any info.

SUPORT
Please visit our 1Sagain bearings website, we strongly encourage that you can communicate with us through email, thanks!






Contact us

Please feel free to give your inquiry in the form below We will reply you in 24 hours
