Product Description
Polyester conveyor belts,also called EP conveyor belts,whose tension resistant body is canvas woven by polyester in warp and nylon-66 in weft.The belts have the characteristics of low elongation in warp and good trough ability in weft,good water resistance,good wet strength,no mould, suitable for medium,long-distance and heavy-load transportation of materials.Because of the high initial modulus of polyester,the belts can choose a relative low safety factor.
Application Fields
Metallurgy, steel plant, building material and construction, energy, chemical,machinery equipment and port.
Tensile Strength & Width
Tensile strength:300-3200 N/mm Width:500-2400 mm
Features
1. Reduced strength
The combination of fabric design and dip process provide less elastic and permanent elongation on all specifications. This minimizes take-up concerns and reduce the number of splice at break-in.
2. High-modules, superior troughability characteristics
With the high-tension PET warp and NN66 fiber could provide the belt high-modules and superior troughability characteristics.
3. Variety choices of cover types and thickness
Properties of the Belts
| Cover Grade | Tensile Strength | Elongation | Abrasion | Change Rate of Tensile Strength and Elongation after Aging | |
| ≥ | <= | <= | |||
| Mpa | kgf/cm2 | % | mm3 | % | |
| Heavy(H) | 24 | 240 | 450 | 120 | -25~+25 |
| Medium(M) | 18 | 180 | 400 | 100 | -25~+25 |
| Light(L) | 15 | 150 | 350 | 200 | -30~+30 |
Specification and Technical Data of Multi-ply Polyester Conveyor Belt
| abric Type | Fabric Structure | Fabric | Ply Thickness (mm/P) | Strength Series(N/mm) | Cover Thickness (mm) | Width | Length | ||||||
| Warp | Weft | Specs | 2 ply | 3ply | 4ply | 5ply | 6ply | Top | Bottom | mm | m | ||
| Polyester | Polyester | polyeter | EP-80 | 0.8 | 160 | 240 | 320 | 400 | 480 | 2.0~8 | 0~4.5 | 400~500 | <=300 |
| (EP) | (EP) | (EP) | EP-100 | 0.8 | 200 | 300 | 400 | 500 | 600 | ||||
| EP-125 | 0.85 | 250 | 375 | 500 | 625 | 750 | |||||||
| EP-150 | 0.9 | 300 | 450 | 600 | 750 | 900 | |||||||
| EP-160 | 0.9 | 320 | 480 | 640 | 800 | 960 | 500~2500 | ||||||
| EP-200 | 1.05 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP-250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP-300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP-350 | 1.5 | - | 1050 | 1400 | 1750 | 2100 | 600~2500 | ||||||
| EP-400 | 1.8 | - | - | 1600 | 2000 | 2400 | 600~2500 | ||||||
| EP-500 | 2 | - | - | 2000 | 2500 | 3000 | |||||||
Hebei Lanjian Rubber Belts Co., Ltd is a medium-sized rubber belts manufacturing enterprise with "Lanjian" series conveyor belt as its leading products.
Our advantages :
1. More than 30 years experiences
Our company was established in 1998,the registered capital is RMB100 million yuan.
2. First-class producing equipment and management system
We have more than 8 conveyor belt production lines, and advanced DrumType vulcanizing machine.
3. Products are certified with ISO9001 standard
We have ISO 9001 Quality Control System, ISO14000 Environment Management System and GB/T28001 Occupational Health&Safety Management System, Measurement Management System, State Standardization Good Compliance Certificate.
4. Strong technical support and R&D capacity
We have a separate design, research and development capability and can be customized according to customer demand.

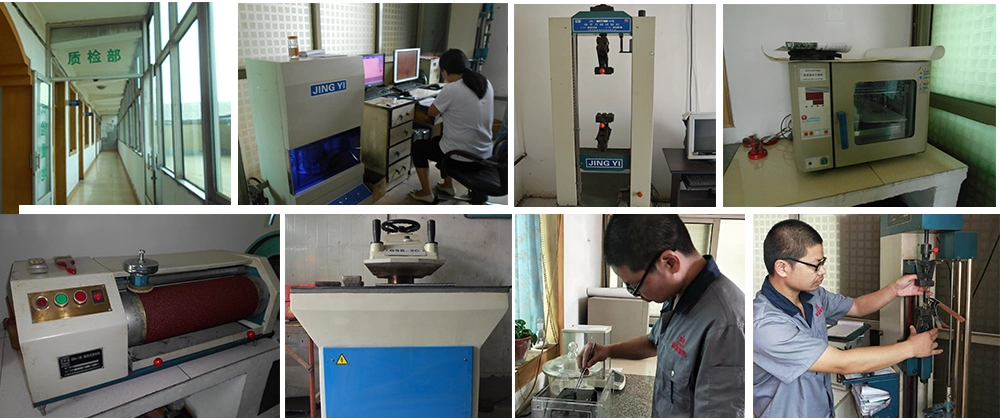

Our company possesses a complete set of detection apparatus, the independent chemical analysis and physical labs, ensuring all the raw materials. Semi-products and finished products are under control and there no unqualified materials and no unqualified product.

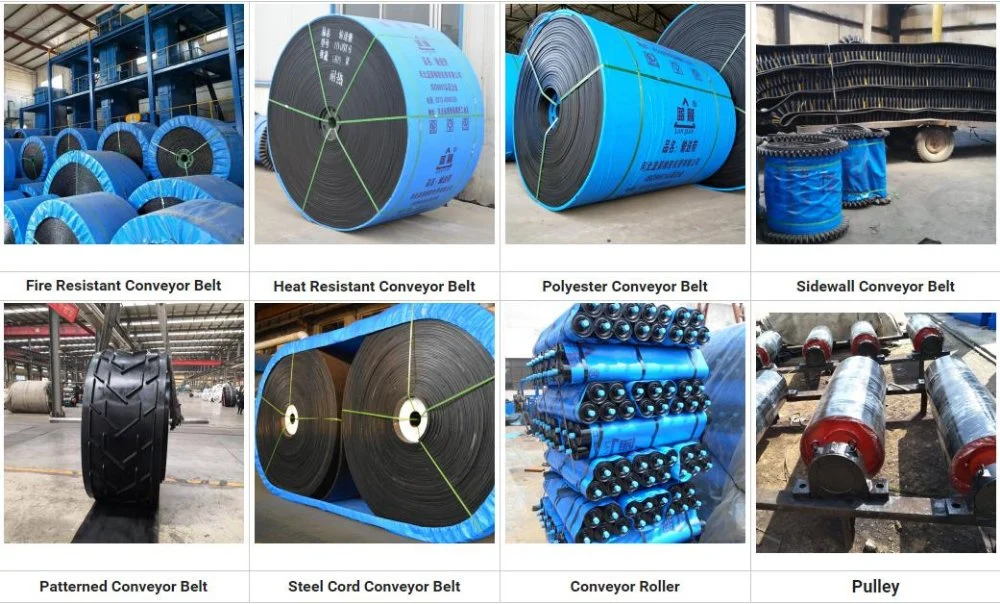

Our major products include: normal conveyor belt below B2400MM, NN/EP conveyor belt, PVC PVG fire resistant conveyor belt, large dip angle conveyor belt, acid&alkali resistant conveyor belt, patterned conveyor belt, oil-resistant conveyor belt, steel cord anti-tear conveyor belt, ring conveyor belt, roller, pulley,etc.
We offer a variety of packing solutions, it can also be customized according to your requirements.
Our products have well sold domestic and abroad including Southeast Asia, Russia, Africa, Australia, Latin America and so on.
1. Pre-sales service
* Inquiry and consulting support
* Sample testing support
* View our factory
2. After-sales service
* We provide 24hour/7days after-sales service
* Regularly visit our client and keep quality tracking
3. One year warranty
No damage to human factors, one year warranty, life-long maintenance.
