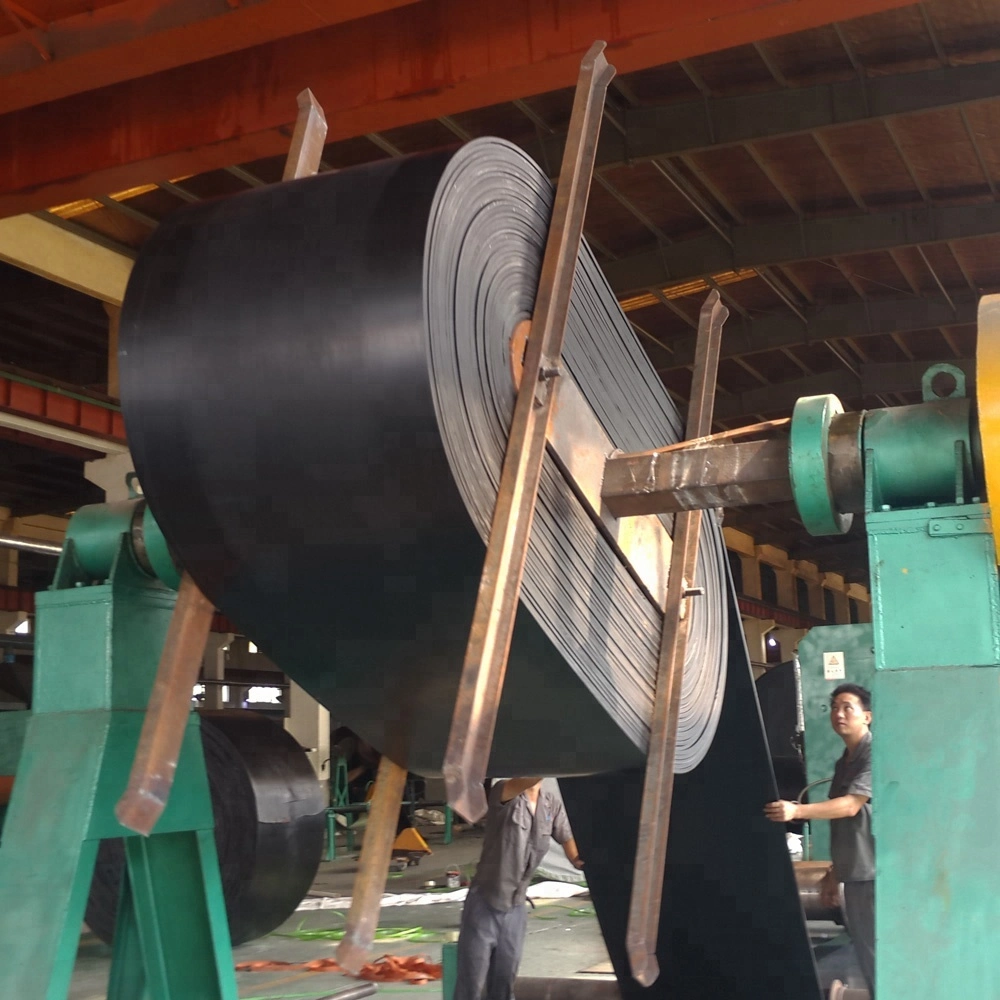

DIN22102 STANDARD CONVEYOR BELT
Feature
DIN22102 is a typical Germany standard for Conveyor belt . For this series of belts, we produce all the belts strictly according to the detaield tech datas, including tension strength, elongation, abrasion, etc. As to the details of rubber cover and the inner fabric materials, you can see as below:
Rubber Cover Datas
Fabric Material
Note: The belt can be customized according to the customers' requirement.
Production Procedure
1. Raw Material
2. Rubber Smelting
3. Shaping
4. Vulcanization
5. Finish Products
6. Quality Control
7. Packing and Delivery
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the widest conveyor belt you can produce.
2.5meters is the widest belt we can produce now.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
Feature
DIN22102 is a typical Germany standard for Conveyor belt . For this series of belts, we produce all the belts strictly according to the detaield tech datas, including tension strength, elongation, abrasion, etc. As to the details of rubber cover and the inner fabric materials, you can see as below:
Rubber Cover Datas
| Standard | Rubber Cover | Adhension | ||||
| Tension | Elongation | Abrasive | C to ply | C to ply | Ply to Ply | |
| DIN22102 | Mpa | % | Mm3 | N/mm ≤ | N/mm > | N/mm |
| Z | 15 | 350 | 250 | 3.5 | 4.5 | 5 |
| W | 18 | 400 | 90 | 3.5 | 4.5 | 5 |
| Y | 20 | 400 | 150 | 3.5 | 4.5 | 5 |
| X | 25 | 450 | 120 | 3.5 | 4.5 | 5 |
Fabric Material
| Fabric type | Fabric structure | Fabric Specs | Ply thick (mm/p) | Strength Series (N/mm) | Cover thickness (mm) | Width (mm) | Length (mm) | ||||||
| Warp | Weft | 2ply | 3ply | 4ply | 5ply | 6ply | Upper | Lower | |||||
| EP (Poly Ester) | E (Polyester) | P (Ny lon) | EP80 | 0.60 | 160 | 240 | 320 | 400 | 480 | 2.0-8 | 0-4.5 | 400- 2200 | ≤250 |
| EP100 | 0.75 | 200 | 300 | 400 | 500 | 600 | |||||||
| EP150 | 1.00 | 300 | 450 | 600 | 750 | 900 | 500- 2200 | ||||||
| EP200 | 1.10 | 400 | 600 | 800 | 1000 | 1200 | |||||||
| EP250 | 1.25 | 500 | 750 | 1000 | 1250 | 1500 | |||||||
| EP300 | 1.35 | 600 | 900 | 1200 | 1500 | 1800 | |||||||
| EP350 | 1.45 | 1050 | 1400 | 1750 | 2100 | 800-2200 | |||||||
| EP400 | 1.55 | 1600 | 2000 | 2400 | 1000-2200 | ||||||||
| EP500 | 1.70 | 2000 | 2500 | 3000 | |||||||||
Note: The belt can be customized according to the customers' requirement.
Production Procedure
1. Raw Material
2. Rubber Smelting
3. Shaping
4. Vulcanization
5. Finish Products
6. Quality Control
7. Packing and Delivery
FAQ
Q1. Can I have a sample order?
Yes, any sample order is welcome to know the quality of our products.
Q2. What about the lead time of the sample or the final order?
2-5 days for normal sample.
20-30 days for a formal order.
Q3. How much is the widest conveyor belt you can produce.
2.5meters is the widest belt we can produce now.
Q4. Is it possible to print our logo or brand on the belt?
Yes, we can print your logo or design on the belt after receipt of your formal authorization letter of the logo or your brand.
Q5. Do you offer the guarantee for your product?
Yes, usually we offer one year warranty for all of our products.
